Zebra print integration with SciNote: print labels with ease

Connect a Zebra label printer

SciNote supports label printing with Zebra label printers through the Zebra Browser Print application. Before printing labels from SciNote using Zebra label “Follow the steps below for connecting a Zebra label printer printers, you will need to install Zebra Bowser Print on the computer you would like to print labels from. This is the case even if your label printer is a network or Wi-Fi printer.

Not all the Zebra label printers support the Zebra Browser Print technology, so make sure to check the list of supported printer models on the official Zebra Browser Print web page before starting.

A few things to keep in mind when connecting a Zebra label printer:

  • If you want to print labels from SciNote using different computers, you will have to follow this process on each computer the Zebra printer is connected to.
  • Label printing from SciNote uses Zebra’s Browser Print technology, which is different from existing Zebra printer drivers. Therefore, even if your Zebra printer is already installed and connected to your computer, you will still need to install Zebra Browser Print to connect the printer to print from SciNote.
  • When you print labels from SciNote for the first time, you will need to allow the browser to connect to Browser Print. After that, this permission for SciNote to use Browser Print will be recorded in Browser Print as an “Accepted Host.” If you right-click on the Browser Print icon, select “Settings,” and check the “Accepted Hosts” section, your SciNote domain should be listed there.
  • For the most accurate label preview, the label preview settings and the printer should be set to the same resolution (dpi). If you are not sure about your label printer resolution, contact your IT administrator.

Follow the steps below for connecting a Zebra label printer.

Connect a Zebra printer via USB cable

  1. Make sure your Zebra printer is connected to power and turned on.
  2. Make sure your computer is connected to the internet and that you can access your SciNote account on it.
  3. Connect the Zebra printer to your computer using a USB cable
  4. Download the Zebra Browser Print application according to your operating system: official downloads page.
  5. Install the Zebra Browser Print application (follow the steps provided by Zebra).
  6. Open SciNote and login into your account.
  7. Go to Settings/Add-ons/Label printers/Zebra label printers and choose the Details option.
  8. Choose the Update printers option to refresh the list of printers.
  9. Your Zebra printer should now be listed in SciNote.
  10. Go to inventories and start printing your labels.

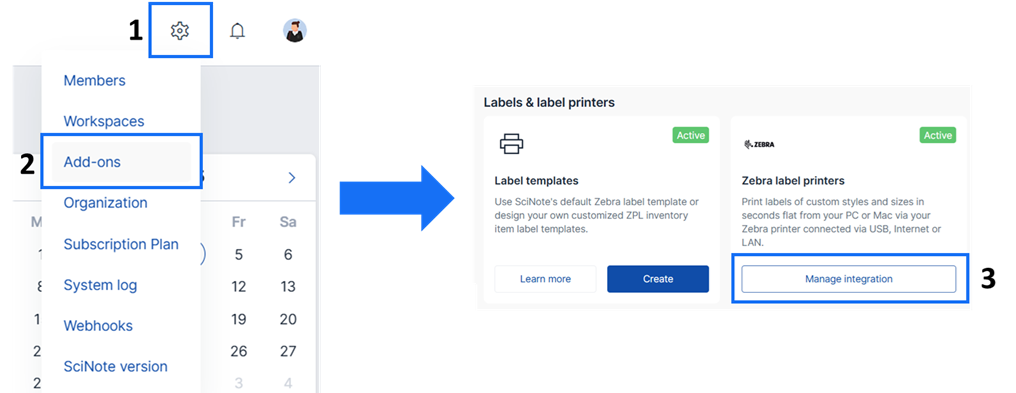

SN Blogpost Zebra_Printer_Path

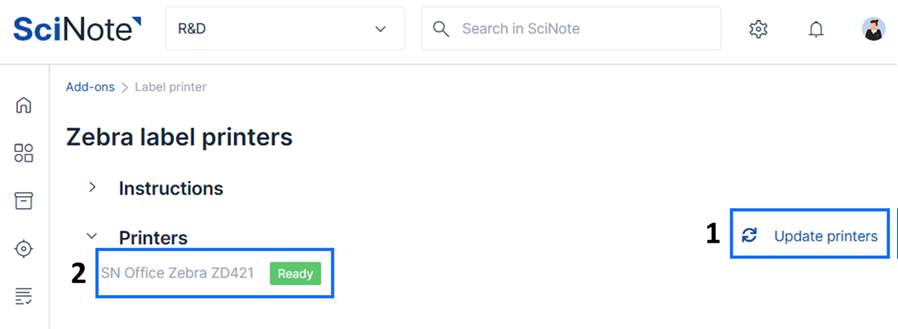

SN Blogpost Zebra_Printer_Update&Status

Connect a Zebra printer via network (LAN or WiFi)

  1. Make sure your Zebra printer is connected to power, turned on and connected to the computer by LAN network cable or by Wi-Fi. Make sure that the printer is connected to the same network as your computer.
  2. Make sure your computer is connected to the internet and that you can access your SciNote account on it.
  3. Download the Zebra Browser Print application according to your operating system: official downloads page.
  4. Install the Zebra Browser Print application (follow the steps provided by Zebra).
  5. Open the Zebra Browser Print application, click “Manage” in Added Devices section, and set the printer name, IP address and Port number of the printer. Click “Add” (see image below). The printer IP address should be set as “Static” (you might need to contact your IT administrator for help).
  6. Open SciNote and login into your account.
  7. Go to Settings/Add-ons/Label printers/Zebra label printers and choose the Details option.
  8. Choose the Update printers option to refresh the list of printers.
  9. Your Zebra printer should now be listed in SciNote.
  10. Go to inventories and start printing your labels.
Browser-Print-Enter-IP

Printer connection troubleshooting, tips and tricks

  • Is Zebra printer turned on and set to the LAN option?
  • Is Zebra printer properly connected to your network by a LAN cable?
  • Are your computer and Zebra printer connected to the same network (by LAN cable or Wi-Fi)?
  • Are the IP address and Port number correct? (Ask your IT administrator for details.)
  • Is the IP address of the Zebra printer set as “Static”? (Ask your IT administrator for details.)
  • Is the printer status updated? (“Update printers” option.)
  • Is the printer in sleep mode? (We recommend switching the printer on, again.)
  • Is the right printer selected in SciNote?
  • Is the printer in sleep mode? (We recommend switching the printer on, again.)
  • Is the printer out of labels? (Check the printer.)
  • Is the printer jammed? (Check the printer for any labels jamming the printer.)
